Video Stream Components

OKO Web Client 2.24.1 - CSP 4.19.0

This guide will assist you in adding a Video Stream Component to an Entity.

Instructions for OKO Web

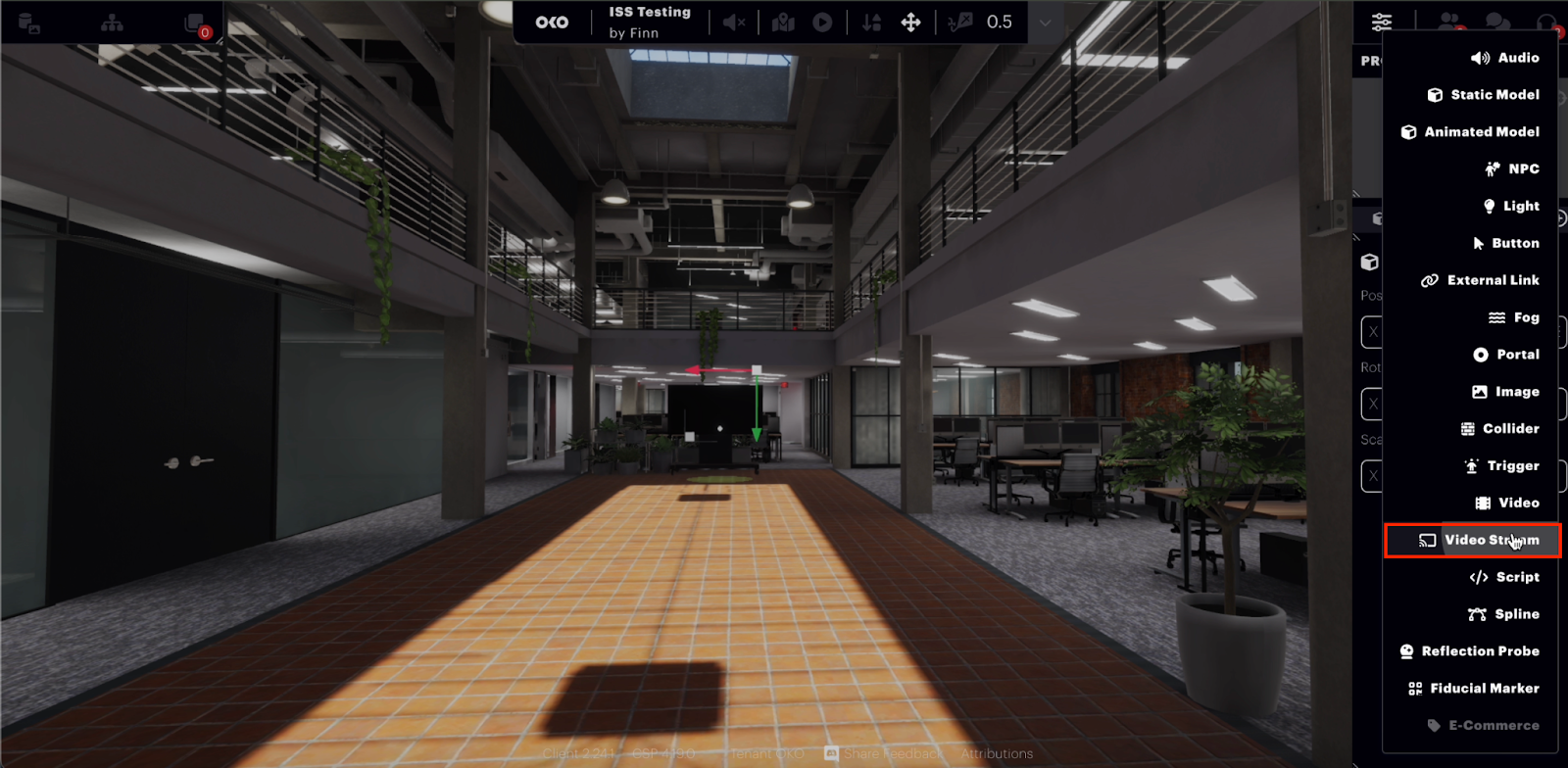

Select “Video Stream” from the Components List.

You will see the Video Stream Component under the Entity in the Properties Menu and additional settings for it.

Transforms – these can be used to place video streams relative to their parent Entity.

Enabled checkbox – you can enable or disable the video stream at any time by checking this.

Visible in AR checkbox – determine whether the Component will be visible in augmented reality (AR) mode by ticking this.

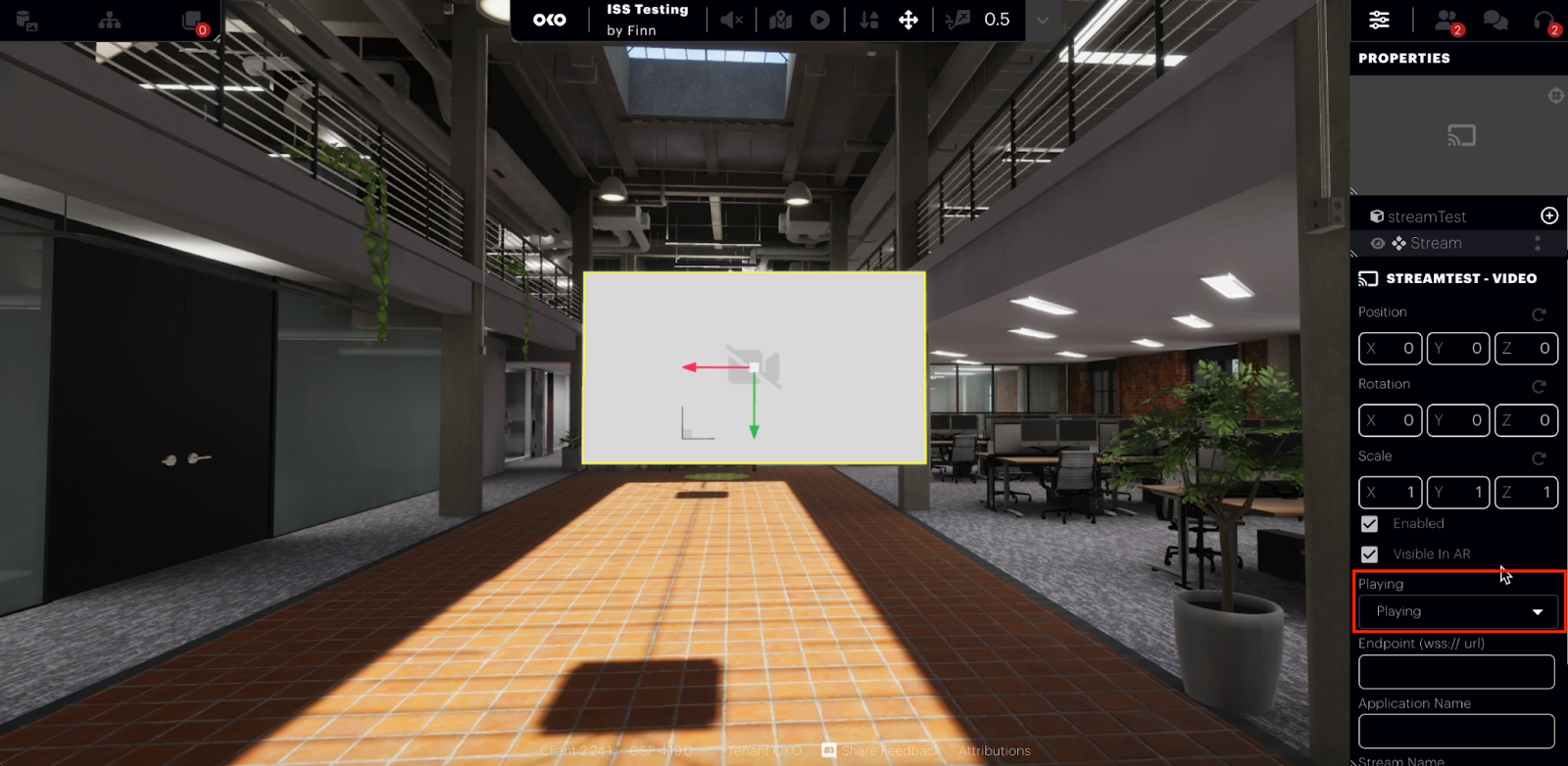

Playing – you can set the default state of the video stream when someone enters the space to be playing or paused.

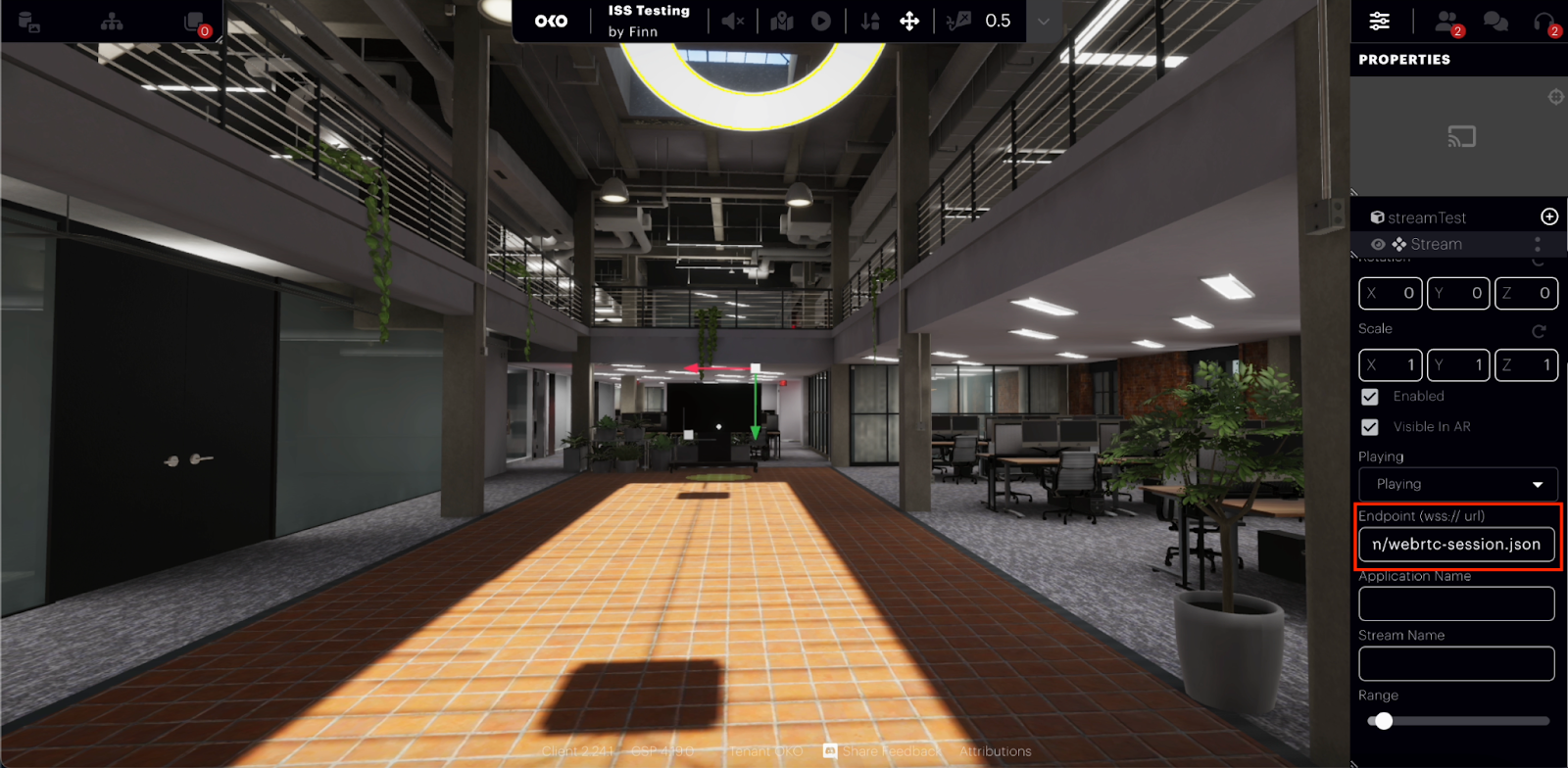

Endpoint – add the webRTC link for your stream.

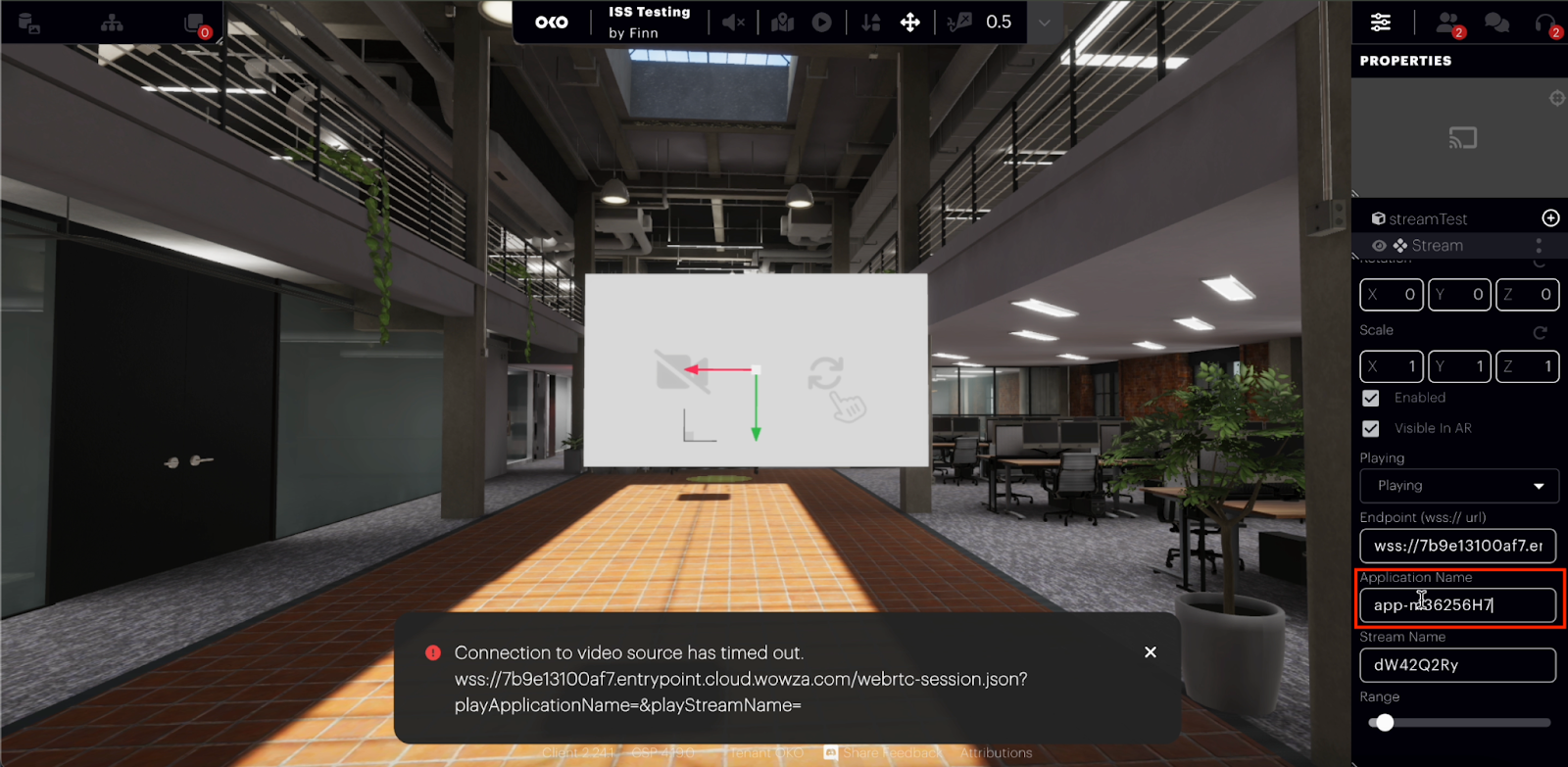

Application Name – add the ID for the application.

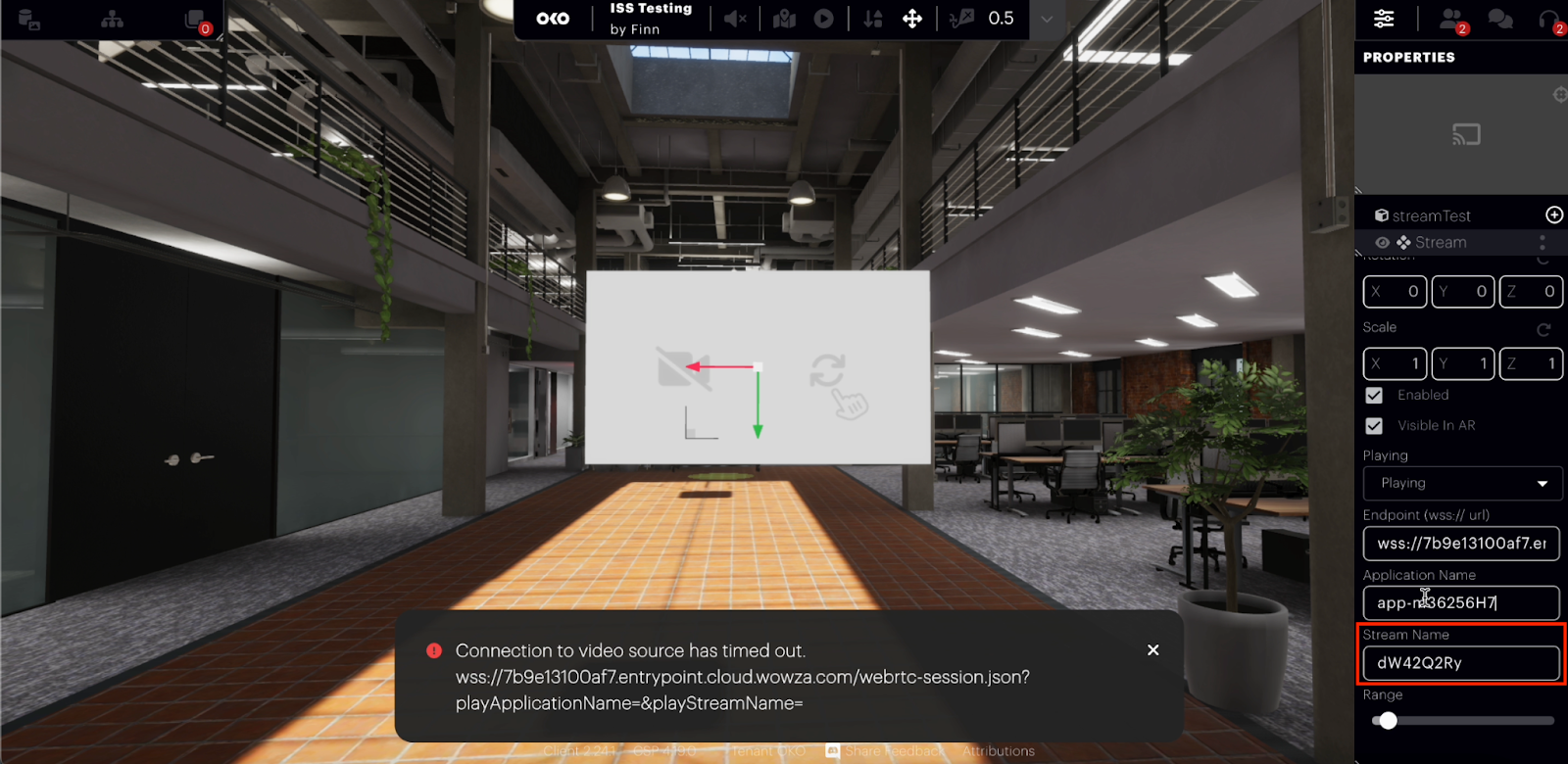

Stream Name – add the ID for the stream.

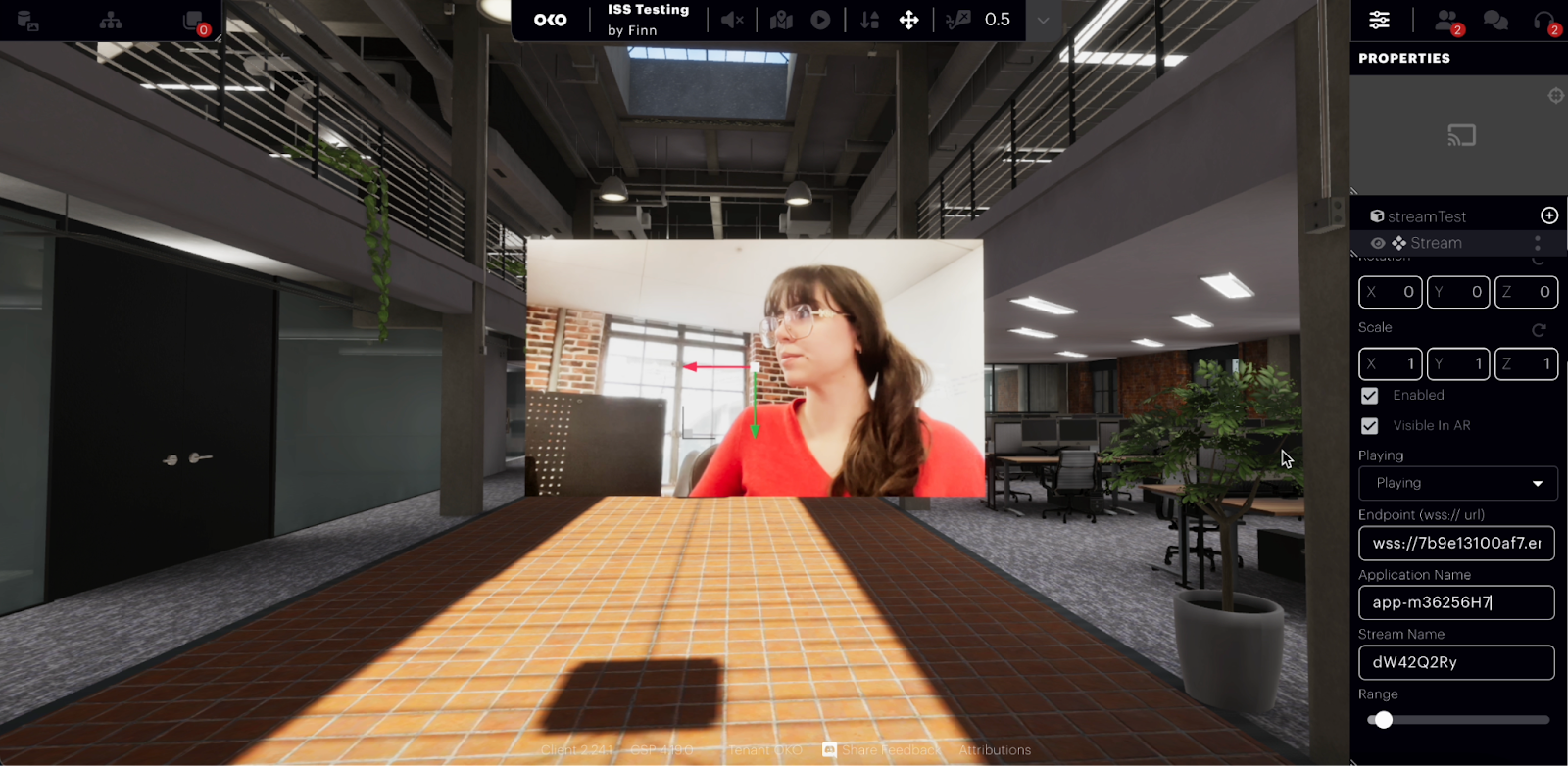

You will see your stream play.

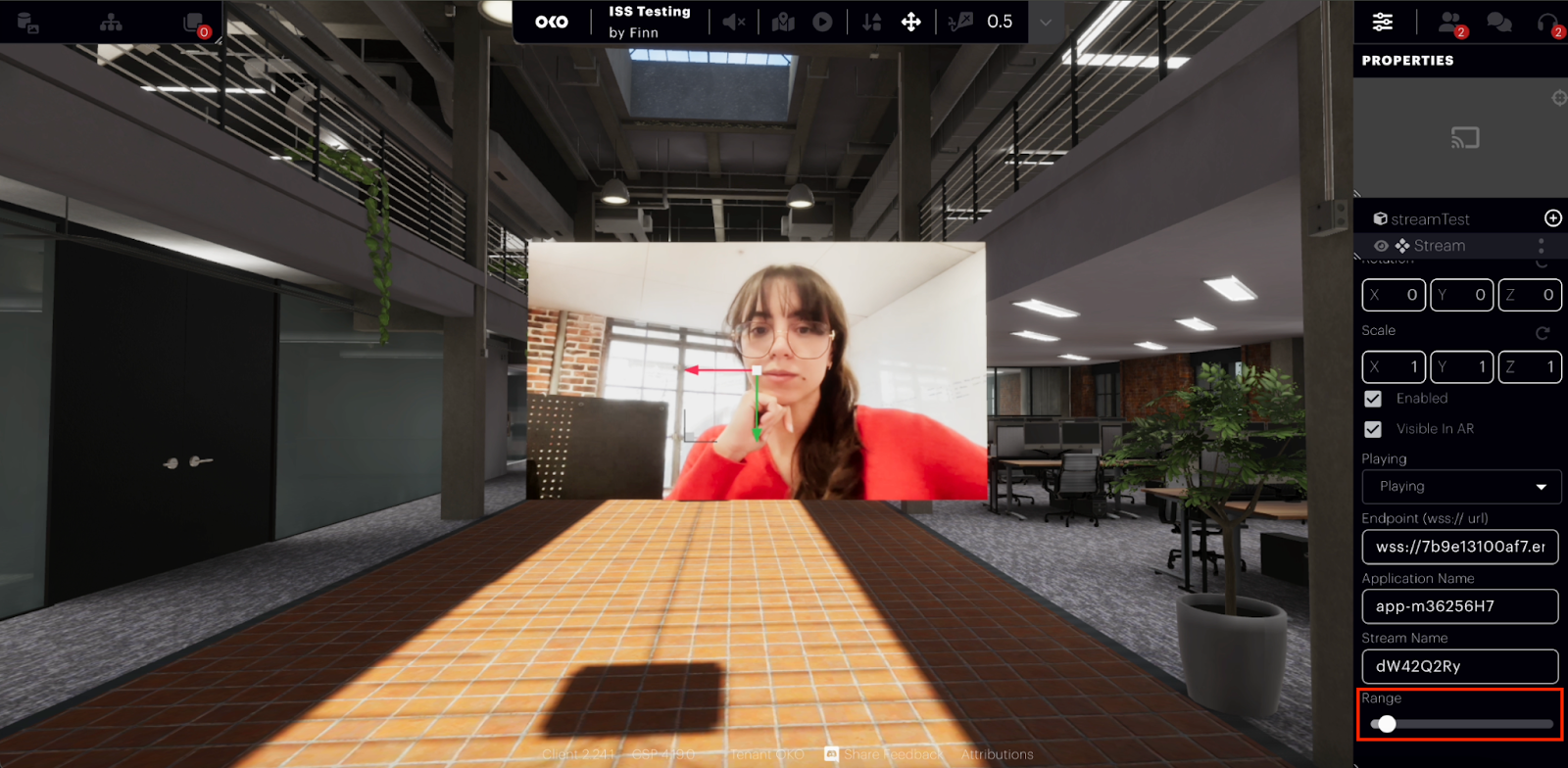

Range – this slider allows you to set the physical radius within which the audio will play.

That’s it for Video Stream Components.
